Herelink 2.4GHz Long Range Transmission System

Herelink AccessoriesHerelink is an all-in-one solution for long-range HD video transmission, which can realize video, data transmission and radio control. The 2.4GHz radio controller with built-in screen which allows users to get long range HD video, data and control information, and the transmission range is up to 20km. The latency is less than 110ms. The large 5.5″ screen displays a multitude of control options such as live images, autopilot configuration through the native QGround control or other GCS applications based on the Mavlink system.

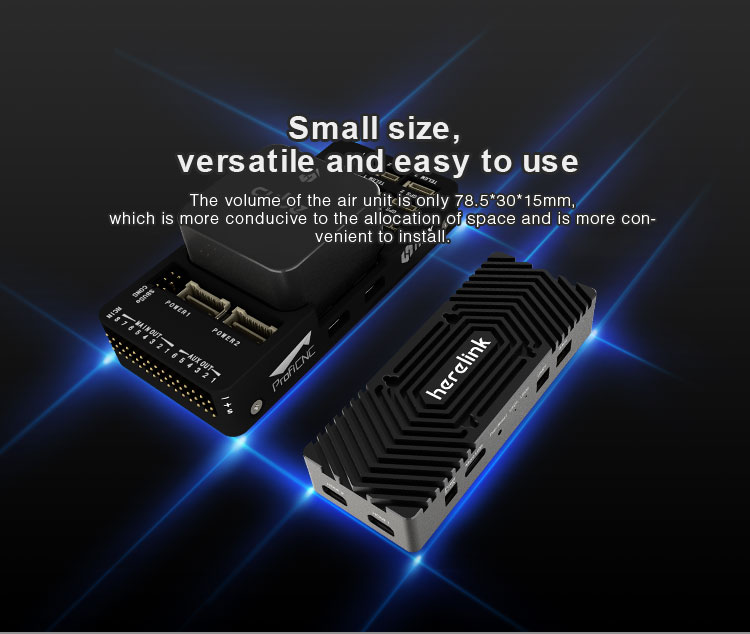

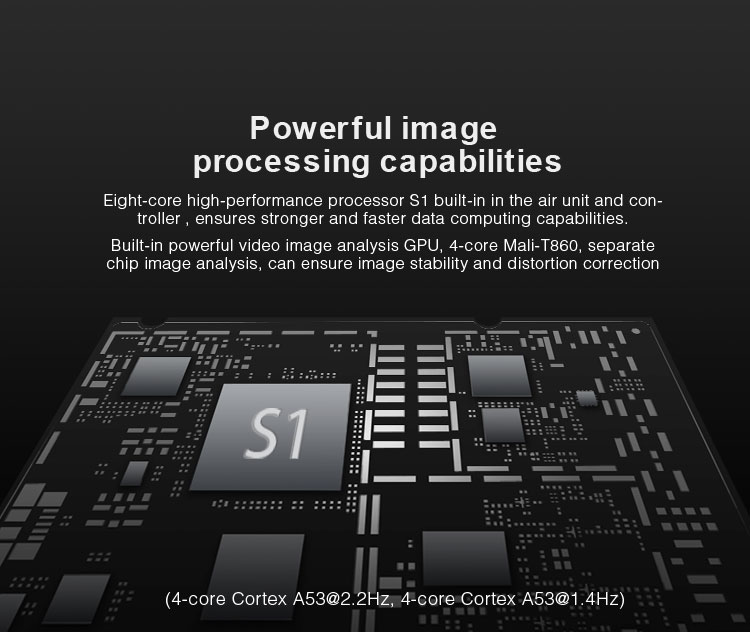

The Air Unit supports 5-12v power input and has a single UART for connection to the flight controller or other Mavlink accessories. Both the Air Unit and the Radio Controller are equipped with powerful Pinecone S1 processors with 4 cores at 2.2GHz and 4 more additional cores at 1.4GHz, which allows for tons of possibilities for future development.

Features:

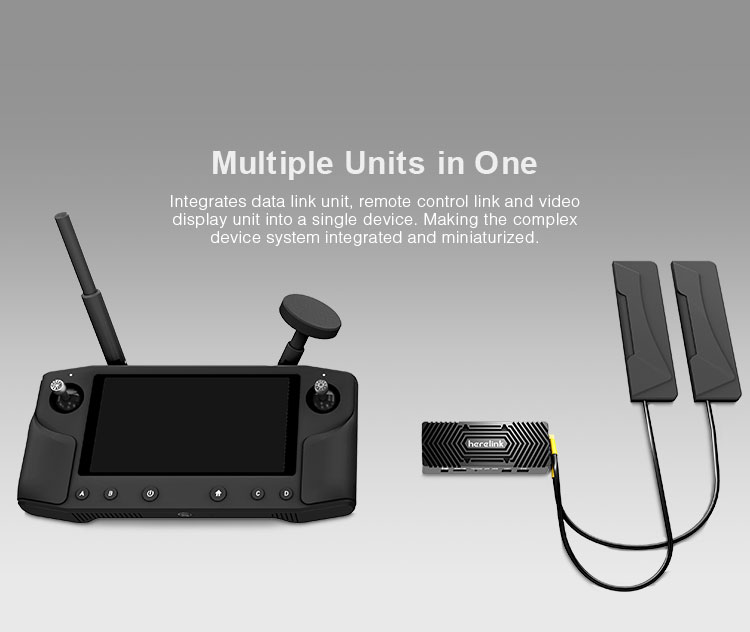

All in one: Telemetry, Video, and Control
2.4Ghz frequency

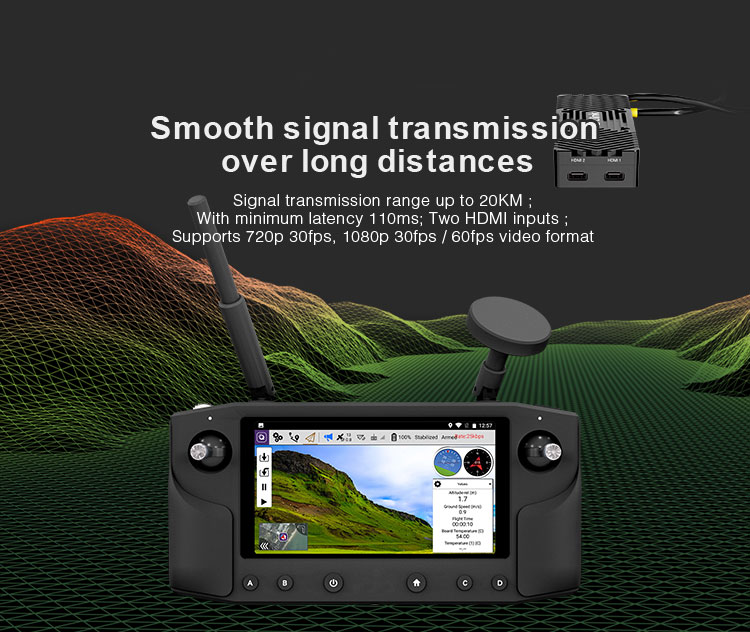

Up to 20KM in FCC mode and 12KM in CE mode
UART Telemetry
RC Protocol: SBUS, iBUS, ETC.

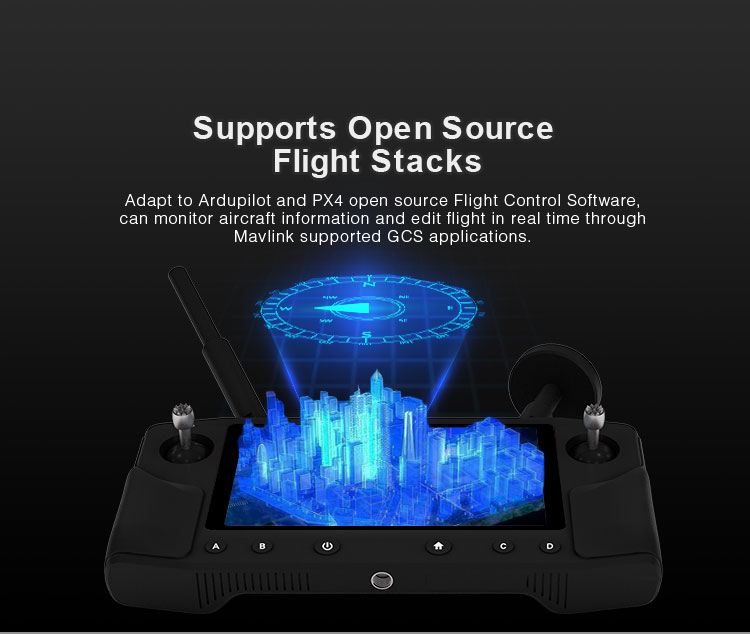

Mavlink compatible
Touch screen
2 HDMI inputs for 1080P@60fps video transmission

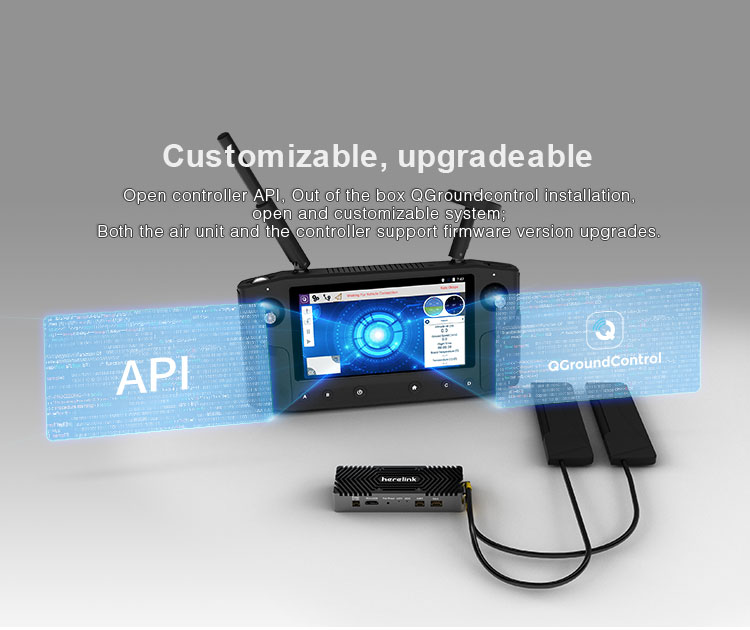

APP QGround control, and API for development

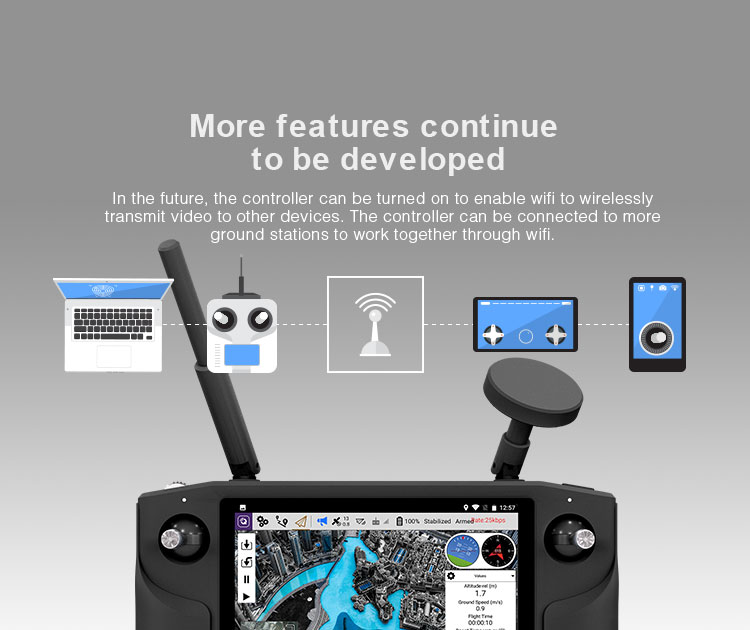

WIFI, Bluetooth and USB to connect with other devices

Your Purchase Includes:

1x Herelink Radio Controller
1x Herelink Air Unit
Herelink Accessories

HereLink-manual-en
